The first time you see a circuit board, you’re often struck by that distinct green hue. Some call it “green oil” or “anti-solder paint,” but in the PCB industry, we know it as the solder mask. It’s like a suit of “protective gear” for the PCB, silently safeguarding this silicon canvas that holds so many electronic dreams. Yet, PCBs aren't just green—they come in red, blue, white, black, and even the less common purple and yellow. So, what exactly does this "protective gear" do? And do different colors mean different performance?
The Triple-Threat Protection of the Solder Mask
A bare PCB is exposed and vulnerable. The solder mask's job is to give it a full range of protection.
First, the solder mask acts as a barrier to prevent oxidation and corrosion. The copper traces on a PCB are conductive, but copper can easily oxidize in the air, forming copper oxide, which significantly impacts its conductivity. The solder mask seals the copper traces from air and moisture, ensuring the long-term reliability of the circuit.
Second, it serves as an electrical insulator. On a PCB, dense traces need to maintain a safe distance to prevent short circuits. The solder mask covers all copper lines except for the solder pads, providing an extra layer of insulation between adjacent traces. This is especially crucial in high-density, high-frequency circuit designs.
Finally, the solder mask plays a critical role during the soldering process. It precisely defines the areas to be soldered (the pads), preventing solder from spreading to other traces during reflow or wave soldering. This effectively avoids short circuits and ensures that components are correctly mounted and the circuit functions properly.
Making the "Protective Gear": The Art of Photolithography
This magical "protective gear" isn't just painted on. It goes through a series of precise photolithography steps to accurately cover every single trace.
Coating: First, a liquid solder mask ink is uniformly applied to the bare board. This is usually done through screen printing, spraying, or curtain coating. After coating, the board is pre-baked to evaporate solvents, leaving the ink in a semi-cured state.
Exposure: This is the key "imaging" step. An engineer uses a photomask film with the PCB design. The areas for the solder pads are transparent, while the rest are opaque. The film is placed tightly against the coated PCB, which is then exposed to ultraviolet (UV) light. The solder mask ink that isn’t blocked by the film undergoes a polymerization reaction and hardens.
Developing: After exposure, the PCB is cleaned in a developer solution. The developer washes away the un-cured ink that wasn't exposed to UV light. At this point, only the solder pads are exposed on the board, while the rest is covered by the hardened solder mask.
Final Curing: Finally, the PCB is baked in an oven at high temperatures to fully cure the solder mask, forming a hard, durable, and chemically resistant protective layer.
The Color Conundrum: Performance and Color
When it comes to PCB colors, this is often the most intriguing topic for people. Why is green so common? What’s the difference between red, blue, black, and white?
In reality, the color of the solder mask has no direct relationship with its performance. Green has become the standard for several reasons:
Less Eye Strain: Green light, at a wavelength of around 555nm, is where the human eye is most sensitive. This makes it less tiring for technicians to perform manual inspections over long periods.
Good Compatibility: The manufacturing process for green solder mask is mature and highly compatible with various components and solder joints.
Cost-Effective: Green ink is produced on the largest scale, making it the most affordable option.

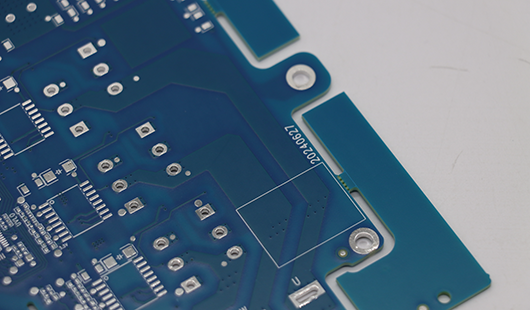

Of course, with advances in PCB design and manufacturing, other colors are becoming more widespread. Blue and red, for example, are often used for personalized designs in consumer electronics. White is highly reflective and commonly used in LED lighting products to enhance light reflection. Black gives a premium, sleek look but can pose challenges for automated optical inspection (AOI) due to its low reflectivity.
Industry Trends and PCBgogo's Commitment
Today, with the rapid development of AI, 5G, and the IoT, PCBs are trending toward higher density, higher frequency, and higher reliability. This places greater demands on solder mask inks, requiring finer printing capabilities, stronger heat resistance and insulation, and more environmentally friendly halogen-free formulas. As a company in the PCB industry, we at PCBgogo understand the importance of the solder mask.
